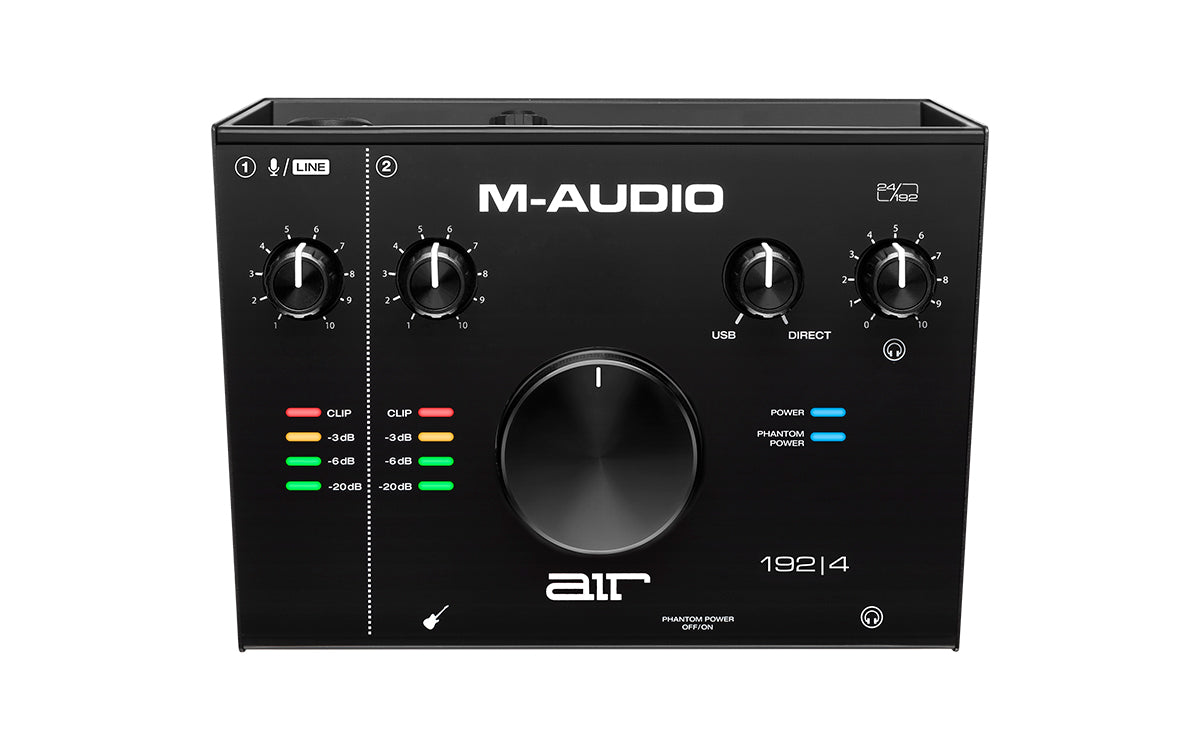

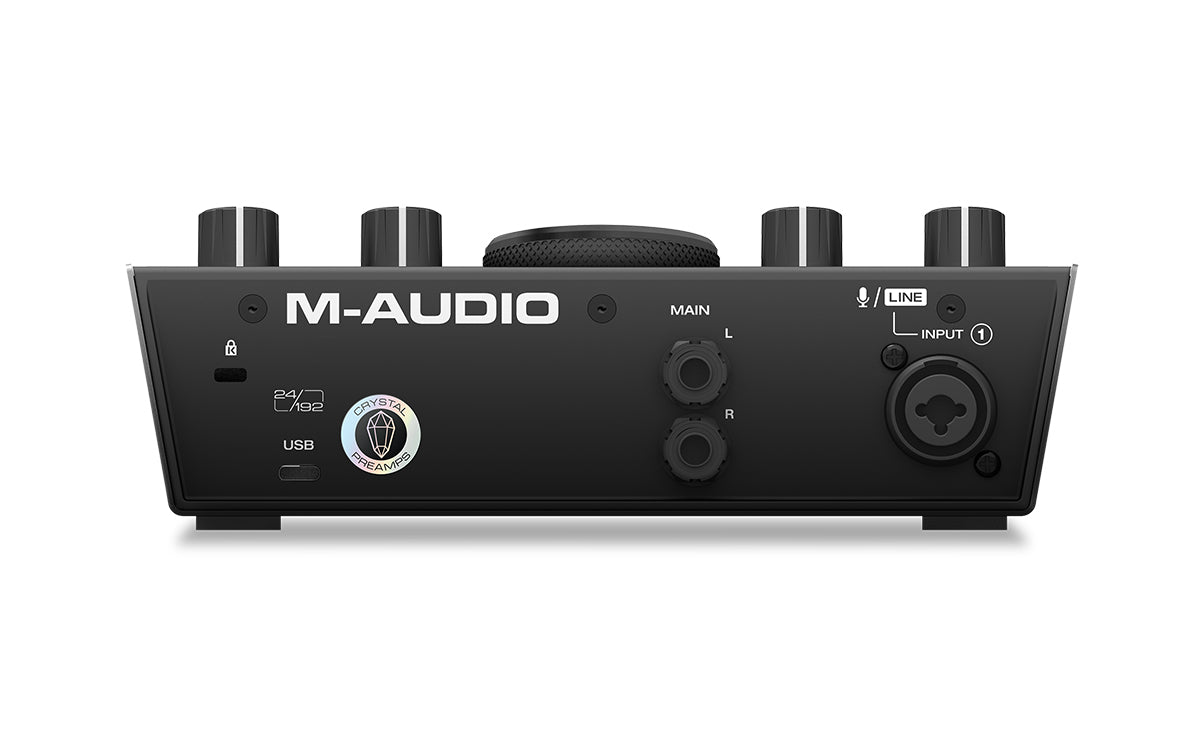

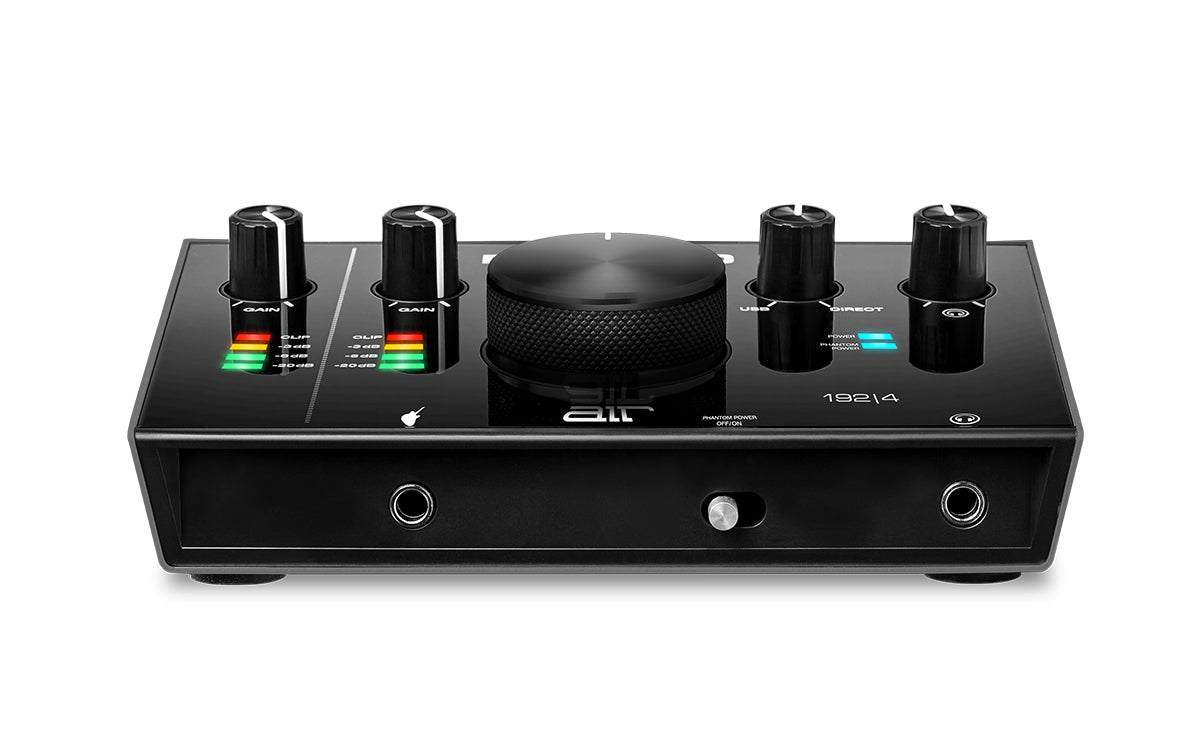

AIR 192-4 M-AUDIO

Minimum system requirements
• macOS: Class 10.8 compliant
• PC: Windows 7, Windows driver

• Standard USB 2.0 or USB-C port
Mic Input 1 (balanced XLR)
RESPONSE FREQUENCY 20 Hz - 20 kHz (+0.1 dB)
DYNAMIC RANGE 104 dB (A-weighted)
SIGNAL TO NOISE RATIO 104 dB (+1.0 dBu, A-weighted)
THD + N 0.003%
EIN PREAMP -128 dBu (max gain, 150 Ω source, A-weighted)
MAX INPUT LEVEL +1.5 dBu
GAIN RANGE 55 dB
Line Input 1 (1/4" [6.35mm] TRS balanced)
RESPONSE FREQUENCY 20 Hz - 20 kHz (+0.05 dB)
SIGNAL TO NOISE RATIO 101 dB (1 kHz, +4 dBu, A-weighted)
THD + N 0.003%
MAX INPUT LEVEL 16 dBu
GAIN RANGE 55 dB
Inst Input 2 (TS 1/4" [6.35mm] unbalanced)
RESPONSE FREQUENCY 20 Hz - 20 kHz (+0.05 dB)
DYNAMIC RANGE 100 dB (A-weighted)
SIGNAL TO NOISE RATIO 102 dB (+ 4 dBu, A-weighted)
THD + N 0.004%
MAX INPUT LEVEL 6 dBu
INPUT IMPEDANCE 1 MΩ
GAIN RANGE 24 dB
Main outputs, L and R (balanced TRS, differential 1/4" [6.35 mm])
RESPONSE FREQUENCY 20 Hz - 20 kHz (+0.06 dB)
DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO 102 dB (A-weighted)
THD + N 0.005%
MAXIMUM OUTPUT LEVEL +7 dBu (1 kHz, -1 dBFS)
Headphone output (TRS 1/4” [6.35 mm] impedance balanced)
THD + N 0.005%
OUTPUT IMPEDANCE 10 Ω
General
POWER USB bus powered
DIMENSIONS (WIDTH X DEPTH X HEIGHT) 8.0" x 6.0" x 2.76" (20.42cm x 15.24cm x 7.0cm)
WEIGHT 2.0 lbs 0.9 kg
