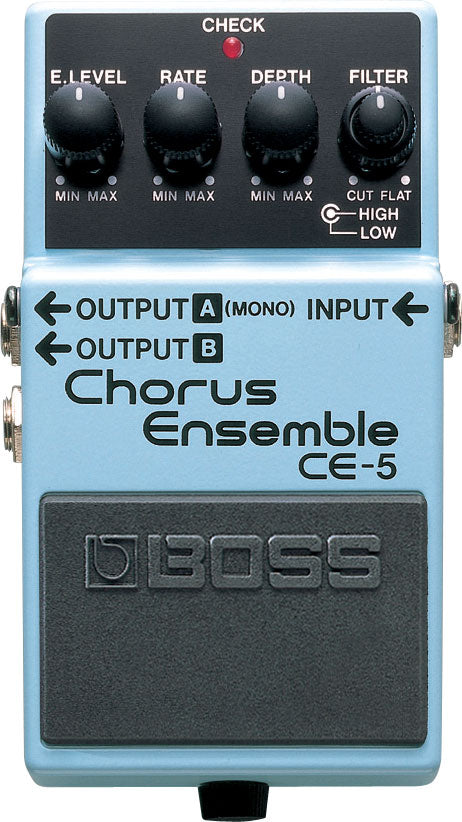

CE-5 BOSS
CE-5 BOSS
Out of stock
From smooth, natural chorus to enveloping stereo chorus – an effect that is ubiquitous in music. The CE-5 covers a wide bandwidth and features high-pass and low-pass filters.
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1k ohm
Recommended Load Impedance
10k ohms or greater
Bypass
Buffered bypass
Controls
HIGH FILTER/LOW FILTER knob
DEPTH knob
RATE knob
E.LEVEL knob
Pedal switch
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT A/B jack: 1/4-inch phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61)
AC adapter (PSA series: sold separately)
Current Draw
55 mA
Expected battery life under continuous use
Alkaline: Approx. 6.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adapter: PSA series
SIZE AND WEIGHT
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)425 g15OZ
