DN-300H DENON

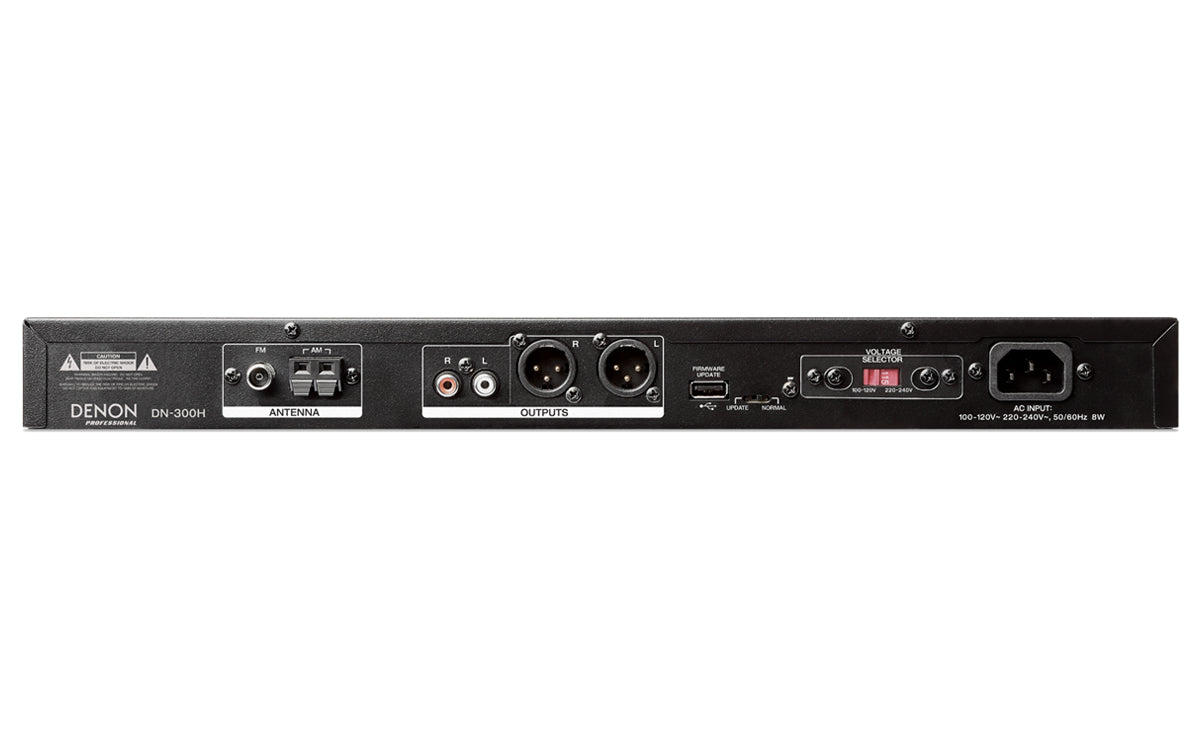

The DN-300H is a full featured AM/FM digital tuner with options such as Program Type Search - allowing the user to search for broadcast types such as News, Weather, Sports, Music Genres, Arts & Culture and Science. Tuning is automatic or manual and the user can store up to 20 favorite preset stations including RDS broadcasts. Balanced and unbalanced audio outputs make it easy to integrate into any installation. A USB port is also available for firmware updates. The display brightness is adjustable and you can switch between stereo and mono mode. An infrared remote control is included.

• FM Section

  • FM Frequency Range (Americas): 87.5 MHz - 108 MHz
  • FM Step Frequency (Americas): 50kHz
  • FM Frequency Range (Europe): 87.5 MHz - 108 MHz
  • FM Step Frequency (Europe): 50kHz
  • FM Frequency Range (Japan): 76 MHz - 108 MHz
  • FM Step Frequency (Japan): 50kHz
  • Sensitivity (S/N = 30dB): <3dBu

  • Signal to Noise Ratio

    • Mono: >70dB
    • Stereo: >65dB

  • Distortion

    • Mono: < 0.3%
    • Stereo: < 0.3%
  • Stereo Separation @ 1kHz: >35dB
  • Frequency Response: 20 - 14kHz (± 3dB)
  • Output Voltage: 500mV / 2.2kΩ
  • ANT Input Impedance: 75 Ω

• AM Section

  • AM Frequency Range (Americas): 520 kHz - 1710 kHz
  • AM Step Frequency (Americas): 10kHz
  • AM Frequency Range (Europe): 522 kHz - 1629 kHz
  • AM Step Frequency (Europe): 9kHz
  • AM Frequency Range (Japan): 522 kHz - 1629 kHz
  • AM Step Frequency (Japan): 9kHz
  • Sensitivity (S/N = 20dB): < 800uV/m
  • Signal to Noise Ratio: > 40dB
  • Distortion: < 1.8%
  • Frequency Response @ 400Hz reference, -6dB: 20 ​​- 2k
  • ANT: Loop antenna

• Environmental

  • Operating Temperature: 5°C to 35°C
  • Storage Temperature: -20°C to +60°C
  • Operating Humidity: 25 – 85%, no condensation

• General

  • Supply Voltage: 115V or 230V, 50 - 60Hz (Voltage Select Switch)
  • Dimensions: 19 x 1.7 x 7.9" (482 x 43 x 200mm)
  • Weight: 5.5 lbs (2.5 kg)
