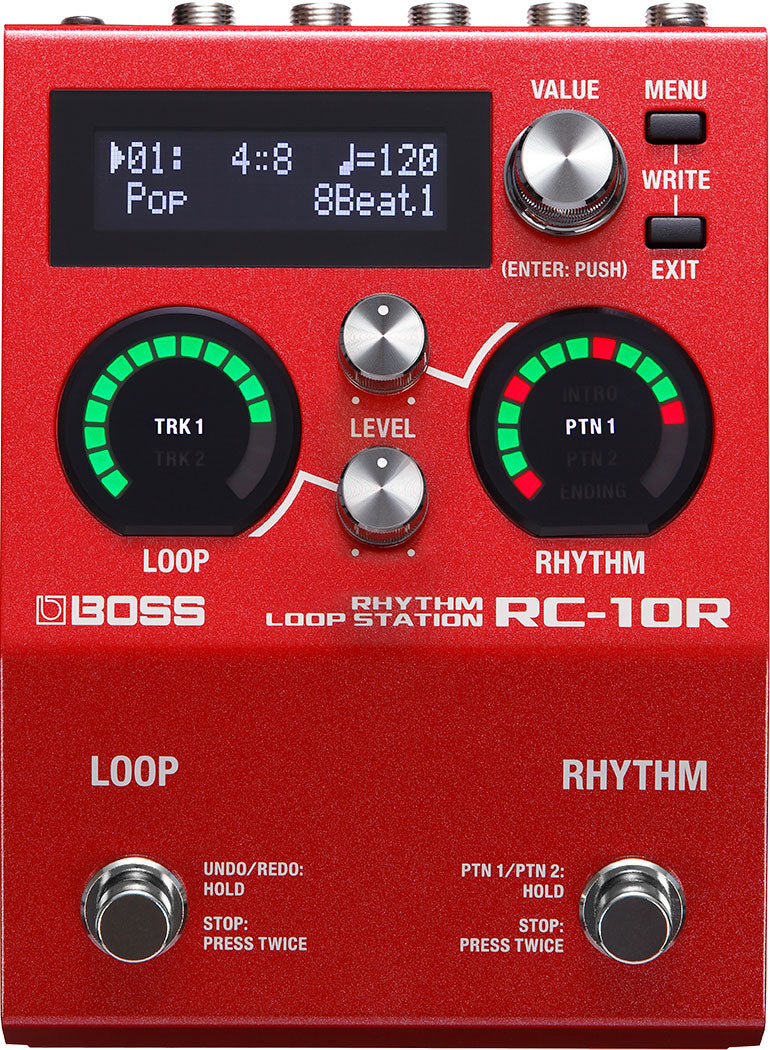

RC-10R BOSS

Looper 280 drum presets on 16 different drum kits
99 memories - 6 hours of memories - 32 bit / Full Midi

SPECIFICATIONS (LOOPER)

Sampling frequency44.1 kHz AD/DA conversion32 bits

In processing 32-bit floating point

Recording / Playback Maximum recording time: approx. 6 hours (stereo)
Maximum sentence memory: 99
Number of tracks: 2
Data format: WAV (44.1 kHz, 32-bit float, stereo)

SPECIFICATIONS (RHYTHM)Rhythm Type 280 types or more Rhythm Control Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, EndingRhythm Kit 16 types Maximum Polyphony 24 voices Effect Reverb (only for rhythm part)

SPECIFICATIONS (COMMON) Memory 99 Nominal input level INPUT A/MONO, B: -10 dBu Maximum input level INPUT A/MONO, B: +8 dBu Input impedance INPUT A/MONO, B: 1 M ohm Nominal output level OUTPUTS A/MONO, B: -10 dBu Maximum output level OUTPUTS A/MONO, B: +8 dBu Output impedance OUTPUTS A/MONO, B: 1 k ohms Recommended load impedance OUTPUTS A/MONO, B: 10 k ohms or more Bypass Buffered bypass Controls RHYTHM switch, LOOP switch, knob
VALUE, RHYTHM LEVEL knob, LOOP LEVEL knob,

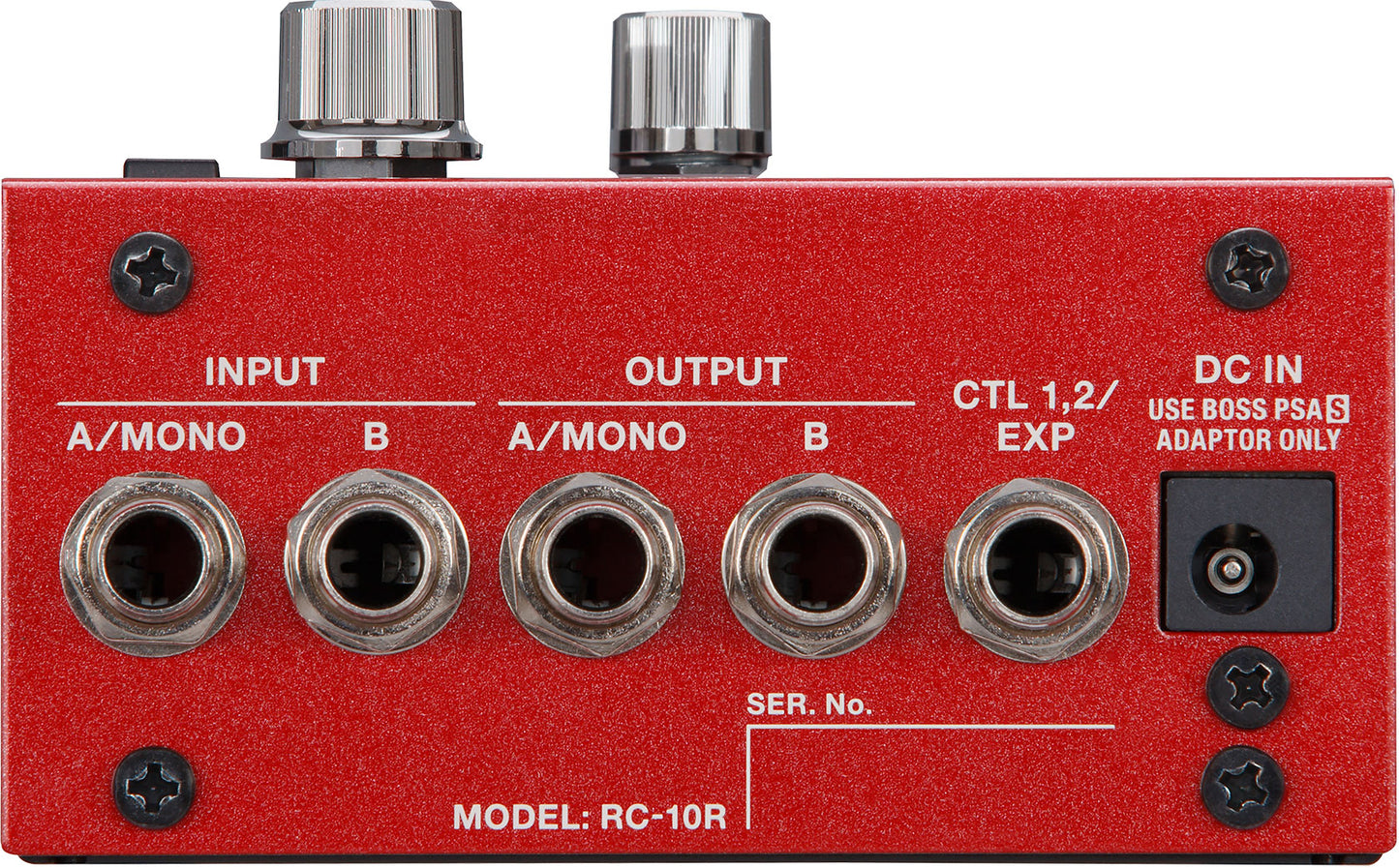

MENU, EXIT button Display 16-character x 2-line LCD (with backlight) Indicator RHYTHM indicator, LOOP indicator Connectors INPUT jacks (A/MONO, B), OUTPUT jacks (A/MONO, B): 1/4" phone type
CTL 1, 2 / EXP jack: 1/4" TRS phone type

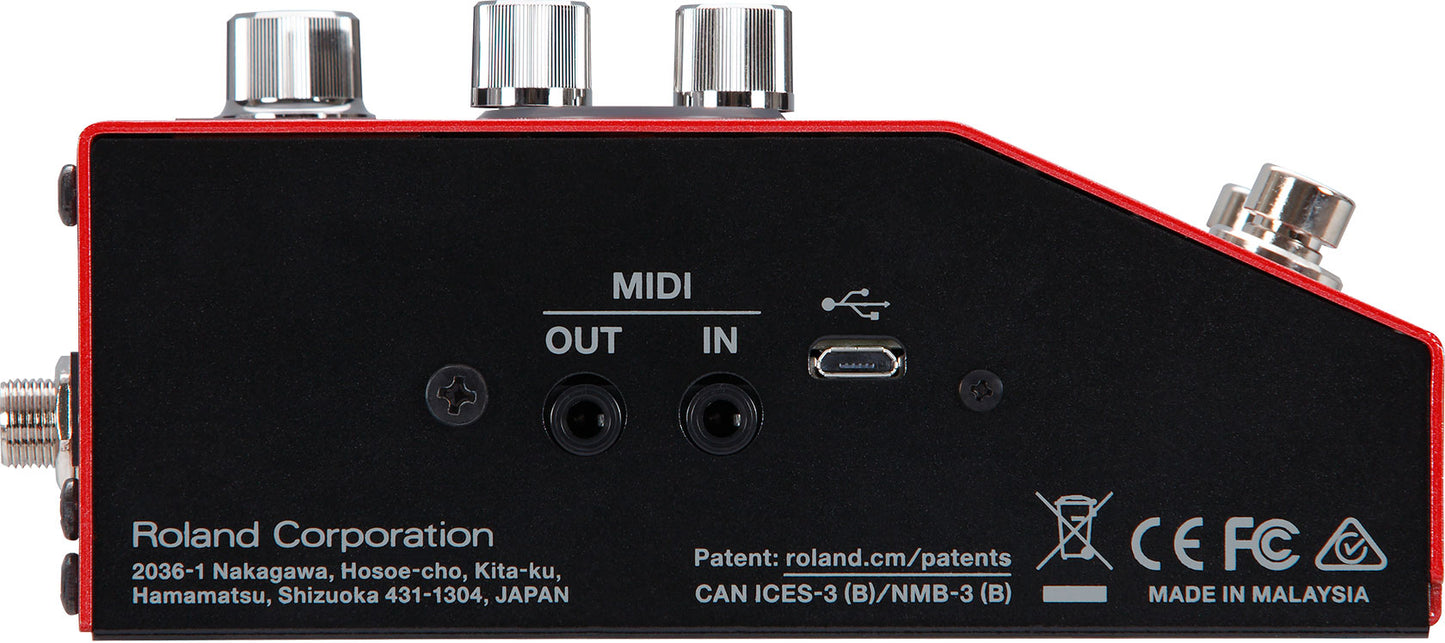

MIDI sockets (IN, OUT): miniature stereo type Socket
DC IN
USB port for computer: USB micro B type Power supply AC adapter Current draw 250 mA Accessories User manual
"SAFETY INSTRUCTIONS"
Power adapter
Rubber Foot x 4 Options (sold separately)Pedal: FS-5U Pedal
double: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30,
Roland EV-5 TRS / MIDI connection cable: B MIDI-5-35 SIZE AND WEIGHT Width 101 mm
4 inches Depth 138 mm
5-7/16 inch Height (excluding rubber foot)63 mm
2-1/2 inch Height (including rubber foot)65 mm
2-9/16 inch Weight (without power adapter)620 g
1 lb 6 oz
