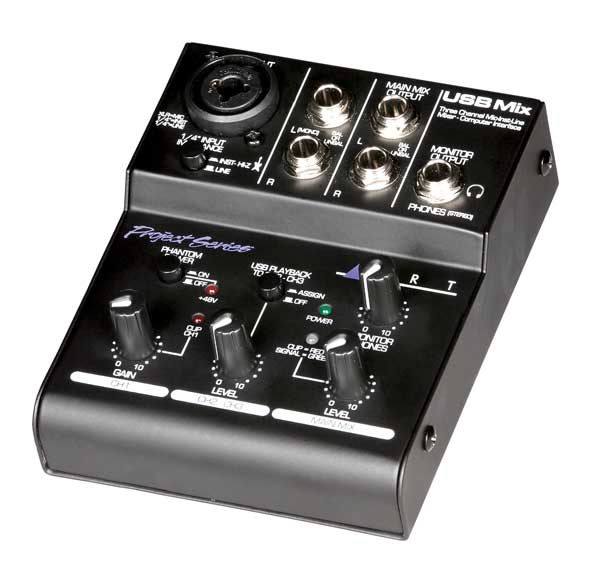

The ART Mix three-channel microphone, instrument and line mixer/computer interface is a compact and versatile audio interface for your computer that converts analog signals from a variety of audio sources to USB audio.
Project Series
| Frequency Response | 20 Hz - 20 kHz (+0, -1 dB) |
| Total Harmonic Distortion | <0.01% @ 1 kHz |
| Maximum Input Level | +4dBu (XLR input), +14dBu (1/4" input) |
| Maximum Output Level | +14dBu (Main Mix Outputs), +13dBu (Monitor output) |
| Input Connections | XLR balanced / 1/4" unbalanced "Combo" jack (ch1 input) 1/4" balanced or unbalanced (Ch2-Ch3 inputs) |
| Output Connections | 1/4" TRS balanced (Main Mix outputs) 1/4" TRS stereo (Monitor output) |
| Input Impedance | 240k Ω (Inst-HiZ), 20k Ω (Line) (Ch 1, Ch2-Ch3 1/4" inputs) > 4k Ω (Ch1 XLR input) |
| Output Impedance | <1k Ω (balanced 1/4"), <500 Ω (unbalanced 1/4") 100 Ω (Monitor output) |
| CMRR | > 54 dB typical |
| Phase Response | All connections are phase coherent |
| Signal to Noise Ratio | > 90 dB typical (Ref 0 dBu) |
| Equivalent Input Noise | -120 dBu typical (XLR balanced, max gain), -100 dBu typical (1/4") |
| Maximum Gain (In to Main Out) | +53dB (XLR), +32dB (1/4") Ch1 input +10dB (1/4") (Ch2-Ch3 inputs) |
| Maximum Gain (In to USB) | +44dB (XLR), +23dB (1/4") (Ch1 input) +1dB (1/4") (Ch2-Ch3 inputs) |
| Maximum Gain (USB to Out) | +14dB (Main Mix outputs), +13dB (Monitor output) |
| Phantom Power | Switch selectable, +48V DC, filtered, current limited |
| A/DD/A | 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer 0.4 ms A/D latency @ 44.1 kHz |
| Computer Interface | USB 2.0 compliant, Windows 7, Vista, XP, 2000, ME, 98SE Mac OS 9.1 / OS X computers with native USB support, Linux |
| Chassis Type | All steel black finish |
| Power Requirements | 5.0V DC @ <500 mA (external) or USB bus powered @ 150 mA typical |
| Dimensions | 1.6" x 4.0" x 4.75" (41mm x 101mm x 121mm) |
| Weight | 1.1 lbs (0.5 kg) |
| Notes | 0 dBu = 0.775Vrms Weight includes power supply and USB cable |
