XSW-D PORTABLE INTERVIEW SET SENNHEISER

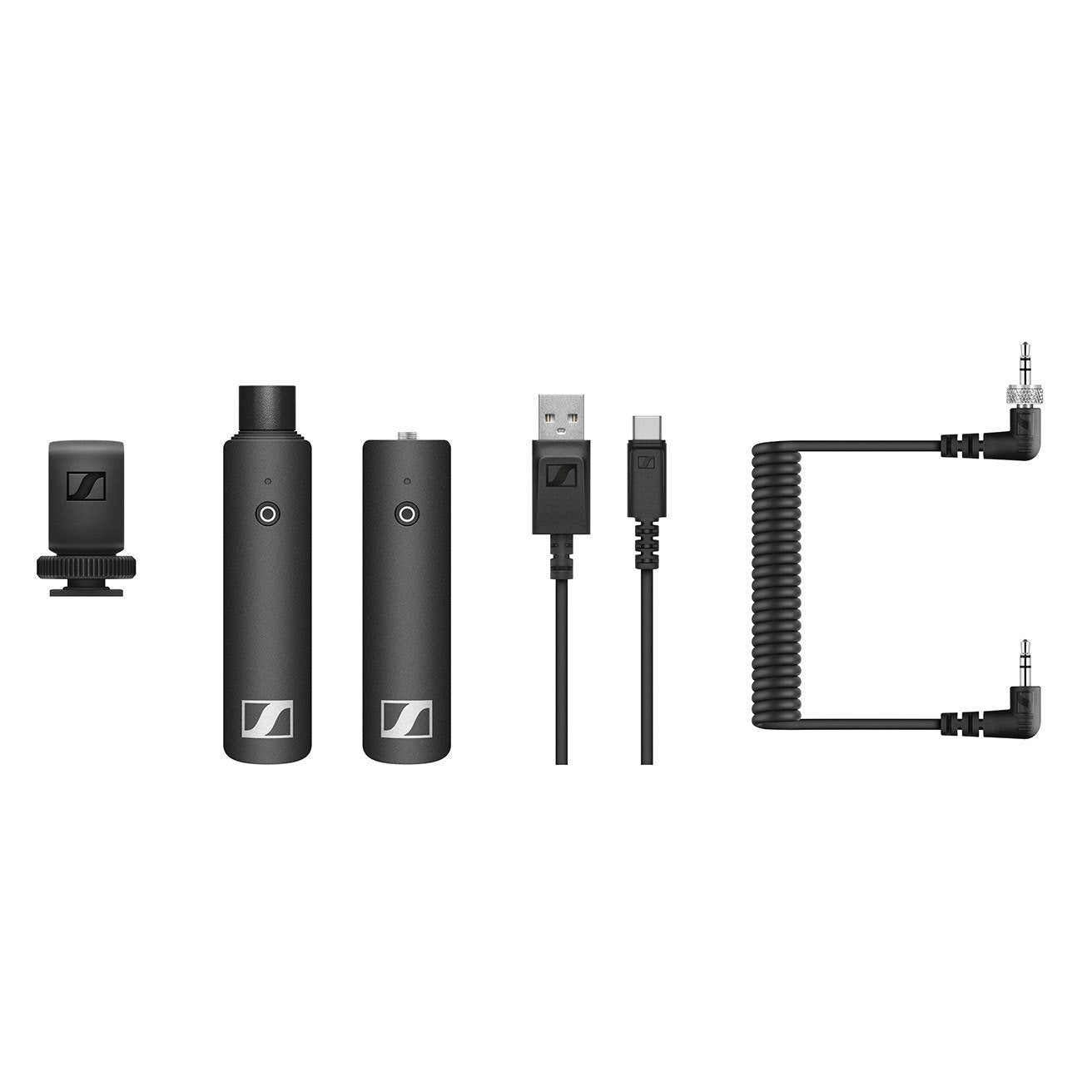

XS Wireless Digital Portable Interview System. One-button wireless audio system with XSW-D XLR female transmitter, XSW-D 3.5mm receiver, 3.5mm coiled cable, hot shoe and USB-A to USB-C charging cable

One-button wireless audio system that uses digital transmission technology to seamlessly connect audio sources. With this sleek solution featuring an XLR transmitter and 3.5mm receiver, recording with a dynamic handheld microphone while maintaining a reliable connection is easier than ever.

Key Features

• Single button for ease of use

• 2.4 GHz universal digital transmission

• Range of 75 m in optimal conditions

• Up to 5 hours of battery life on one charge

• Switching between multiple transmitters connected to the same receiver

• Possibility to combine transmitters and receivers of your choice

• Activating silent mode from the transmitter or receiver

• Dimensions

  XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm

  XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm

  XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm

  XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm

  XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm

  XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm

  XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm

• Total harmonic distortion (THD)

  < 0.1%

• Recharge time

  typ. 3 h

• Audio output

  max. 12 dBu

• Serving temperature

  -10°C to +55°C (14°F to 131°F)

• Signal-to-noise ratio (S/N)

  ≥ 106 dB

• Autonomy

  until 5 a.m.

• Modulation

  GFSK with TDMA

• Battery type(s)

  Li-Ion

• Ability

  850 mAh

• Codec

  aptX® Live

• Frequency range

  2,400 - 2,483.5 MHz

• Maximum input voltage

  typ. 5.0 V

• Transmission power

  max. 10 mW

• Tension

  3.7 V

• Relative humidity of air Operation

  95% (non-condensing)

• Latency

  < 4 ms

• Temperature range

  0 °C - 60 °C

• Audio frequency response

  3.5 mm jack/XLR: 80 - 18,000 Hz

  6.3 mm jack: 10 - 18,000 Hz
