XSW1-ME3-A SENNHEISER

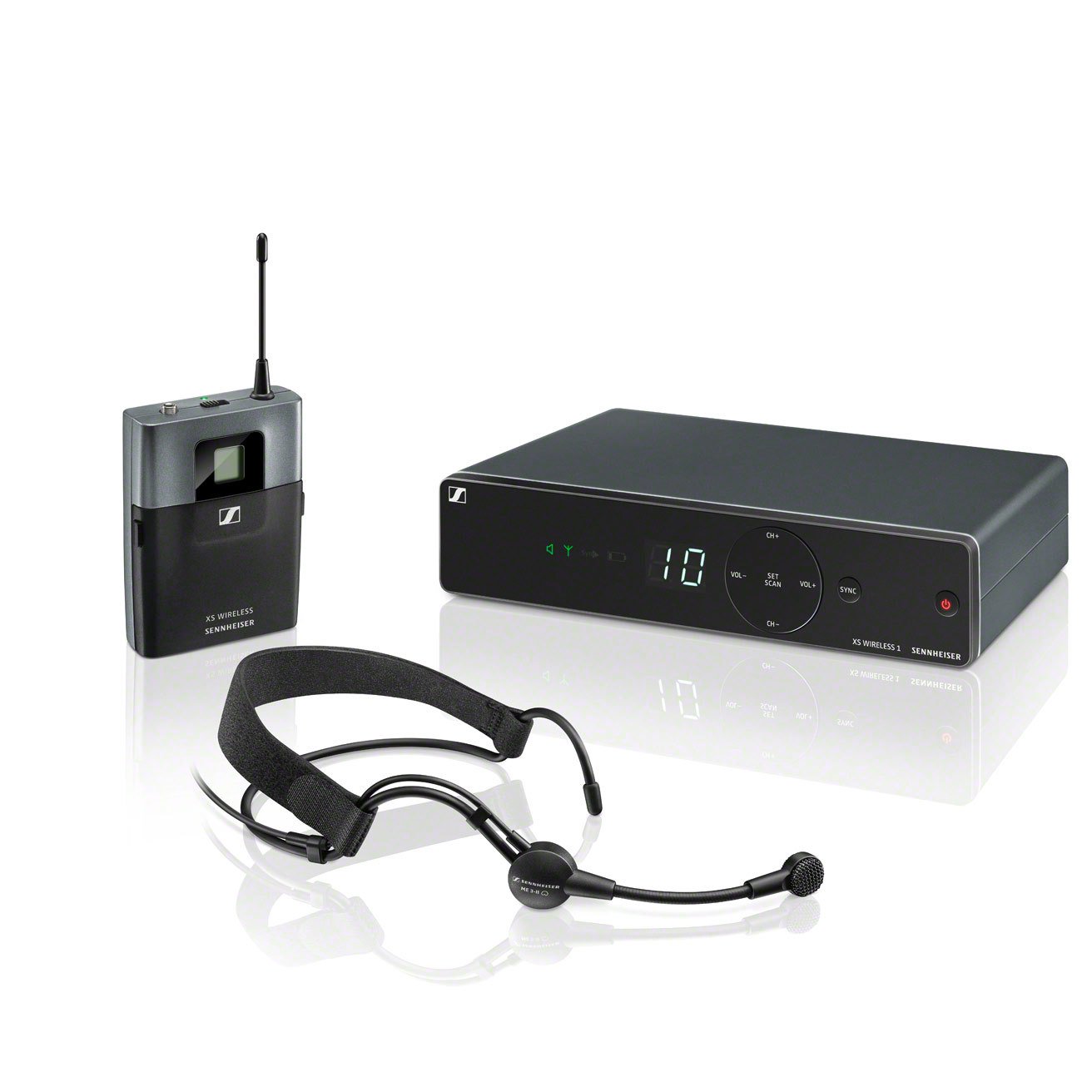

The XS WIRELESS 1 HEADBAND MICROPHONE SYSTEM is an all-in-one wireless device for singers and presenters that excels in live sound when you need to dance and sing at the same time.

Receivers

• Dimensions

  approximately 200 x 42 x 127 mm

• Weight

  About 340 g

• Power supply

  DC 12 V nom. / 300 mA

• • BF frequency response

    50 to 16,000 Hz (-3 dB)

Issuer

• Dimensions

  approximately 71 x 96 x 28 mm

• Weight

  about 95 g

• Autonomy

  About 10 hours

• • Power supply

    2 AA batteries, 1.5 V

  • Adjustment Range Transmitter

    0 to -30 dB, adjustable in 10 dB steps

• Microphone

  Electrostatic (condenser)

• Total harmonic distortion (THD)

  ≤ 0.9%

• Directivity

  Cardioid

• • Signal-to-noise ratio (S/N)

    ≥ 103 dBA

  • HF output power

    10 mW

  • Switchable bandwidth

    Up to 24 MHz

  • Modulation

    Wideband FM

  • Operating voltage

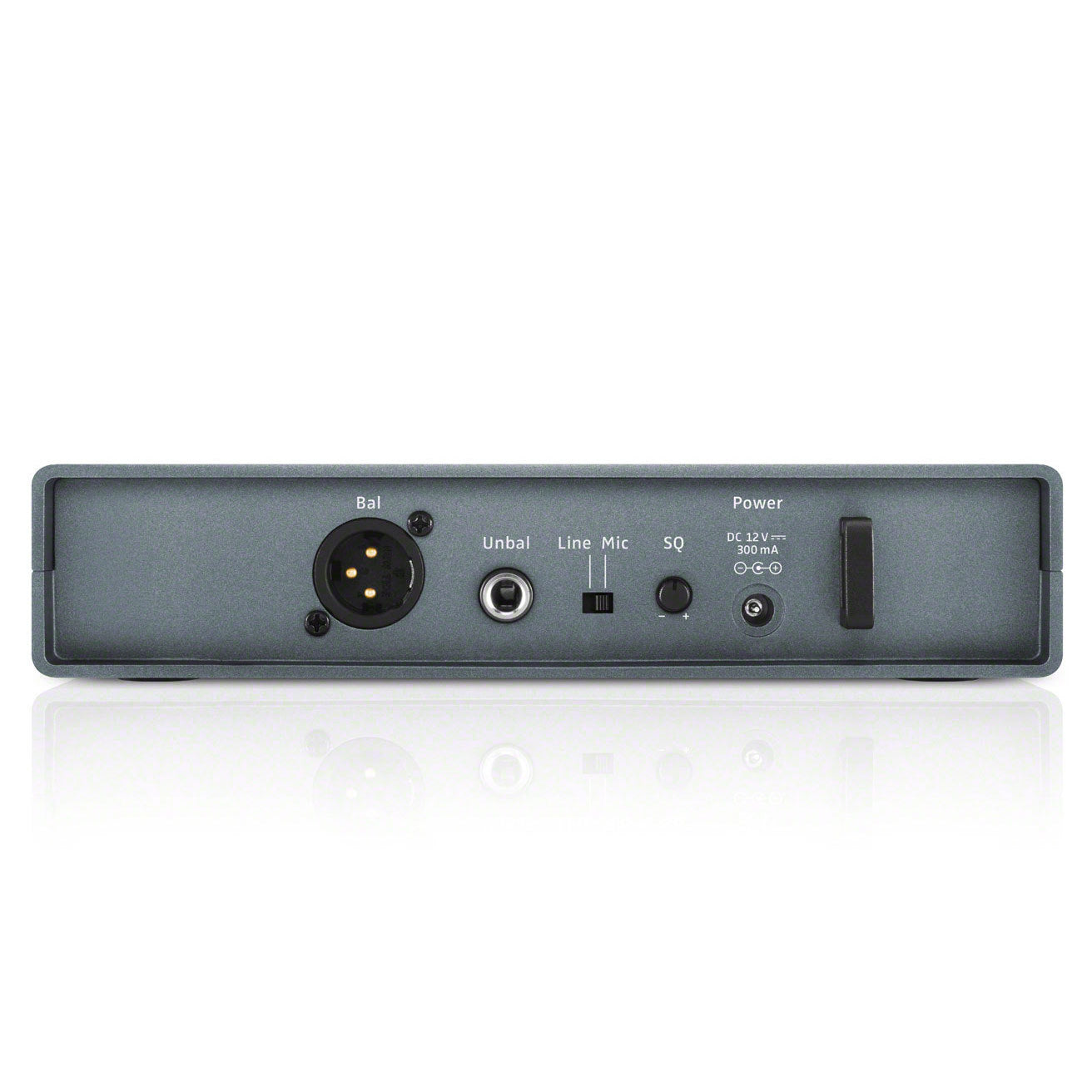

    6.35 mm jack (unbalanced): +6 dBu, XLR jack (balanced): +12 dBu

  • Clutter

    Robust ABS housing

  • Frequency

    8 frequency banks, each with up to 10 factory preset channels

  • Frequency range

    A: 548-572MHz, GB: 606-630MHz
    B: 614-638 MHz
    C: 766-790 MHz
    D: 794-806 MHz
    E: 821-832 MHz, 863-865 MHz
    K: 925-937.5 MHz

  • Sensitivity

    < 3 μV at 52 dB(A)rms S/N ratio

  • SPL for maximum deviation

    150 dB

  • Silent Agreement

    Adjustable from 3 dBμV to 28 dBμV (combined with pilot signal)

  • Synchronization

    2.4 GHz, low power OQPSK (active only during synchronization)

  • Input sensitivity

    1.5 mV / Pa

  • Audio adjustment range

    45 dB, adjustable in 5 dB steps

  • Line / Mic level

    20 dB, switchable

  • Temperature Range

    Operation: 0°C to +40°C, Storage: -20°C to +70°C

  • Receiver Principle

    Double superheterodyne

  • Principle of diversity

    Diversity by switching internal antennas
