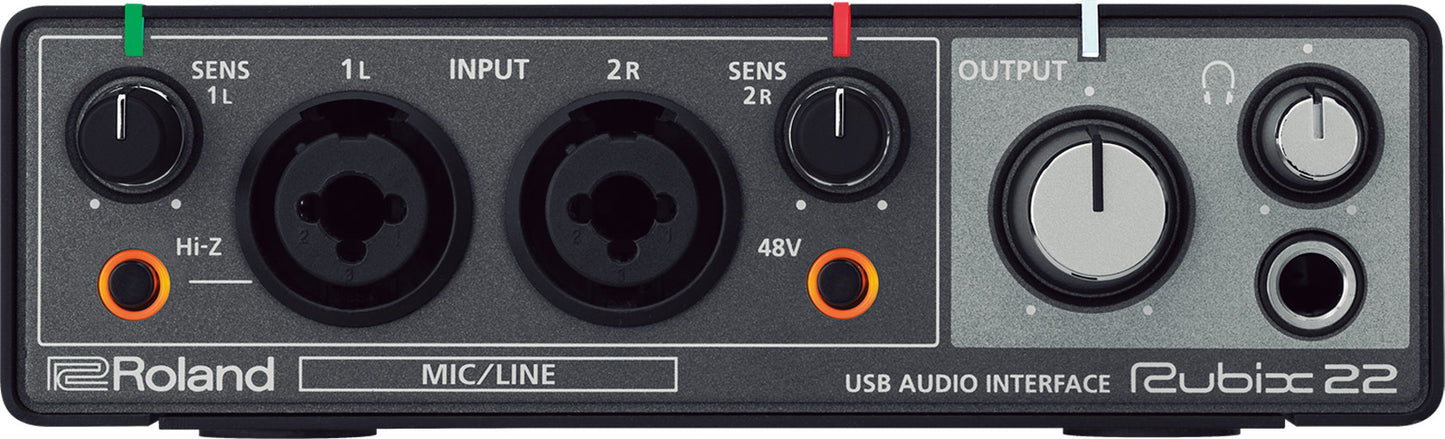

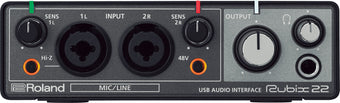

RUBIX22 ROLAND

The Rubix22 strikes the perfect balance between high-fidelity sound, ruggedness, compact size, affordability and crucial features for today's musicians and producers. Supporting 24-bit/192kHz high-resolution audio,

SystemNumber of Audio Record/Playback ChannelsRecord: 2 channels
Playback: 2 channelsSignal ProcessingPC interface: 24 bits
AD/DA conversion: 24 bitsSampling FrequencyAD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHzInterfaceHi-Speed ​​USB

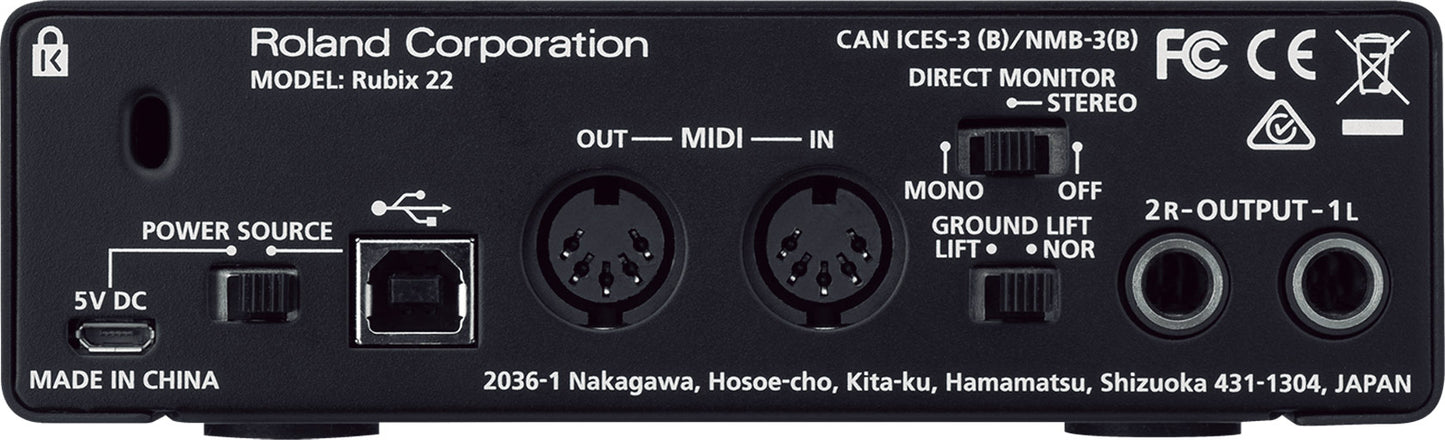

MIDI IN, OUTConnectorsINPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)
INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)
PHONES jack: Stereo 1/4-inch phone type
OUTPUT (1L, 2R) jacks: 1/4-inch TRS phone type (impedance balanced)
MIDI (IN, OUT) connectors
USB port: USB Type B
DC 5V port: USB Type micro B
*1 Current value per channel.
*2 INPUT 1L supports high impedanceControllersSENS 1L, 2R knobs
Hi-Z switch
48V switch
OUTPUT knob
PHONES knob
POWER SOURCE switch
DIRECT MONITOR switch
GROUND LIFT switchIndicatorLevel indicators (1L, 2R)
POWER indicator
Hi-Z indicator
48V indicatorCharacteristicsNominal Input LevelINPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBuMaximum Input LevelINPUT (1L, 2R) connectors (XLR type): +2 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBuNominal Output LevelOUTPUT (1L, 2R) jacks: -6 dBu (impedance balanced)Maximum Output LevelOUTPUT (1L, 2R) jacks: +8 dBu (impedance balanced)PHONES Maximum Output Power20 mW + 20 mW (L + R, 47 ohms load)Headroom14 dBInput ImpedanceINPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced)
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)
INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater
*3 When the Hi-Z is turned onOutput ImpedanceOUTPUT (1L, 2R) jacks: 2 k ohms (balanced)
PHONES jack: 47 ohmsResidual Noise LevelINPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)Dynamic RangeAD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
DA block OUTPUT (1L, 2R) jacks: 109 dB typ.OtherPower SupplySupplied from the computer via USB, DC 5VCurrent Draw500 mAOperating SystemMicrosoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows( A) 10
Apple Mac OS X 10.10 or later
Apple iOS 9 or laterDimensions145 (W) x 165 (D) x 46 (H) mm
5-3/4 (W) x 6-1/2 (D) x 1-13/16 (H) inchesWeight (main unit only)1.0 kg
2 lbs 4 ozAccessoriesSetup Guide
Leaflet “USING THE UNIT SAFELY”
USB cable
Ableton Live Lite Serial Number Card
* 0 dBu = 0.775 Vrms
