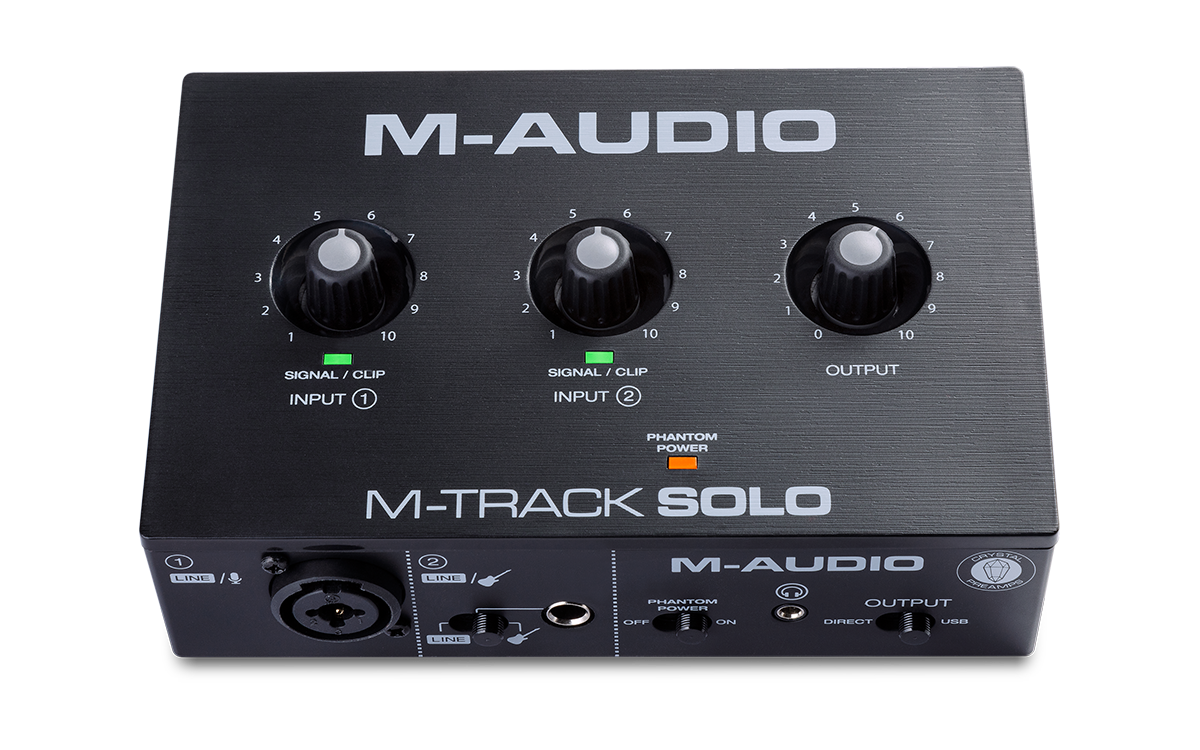

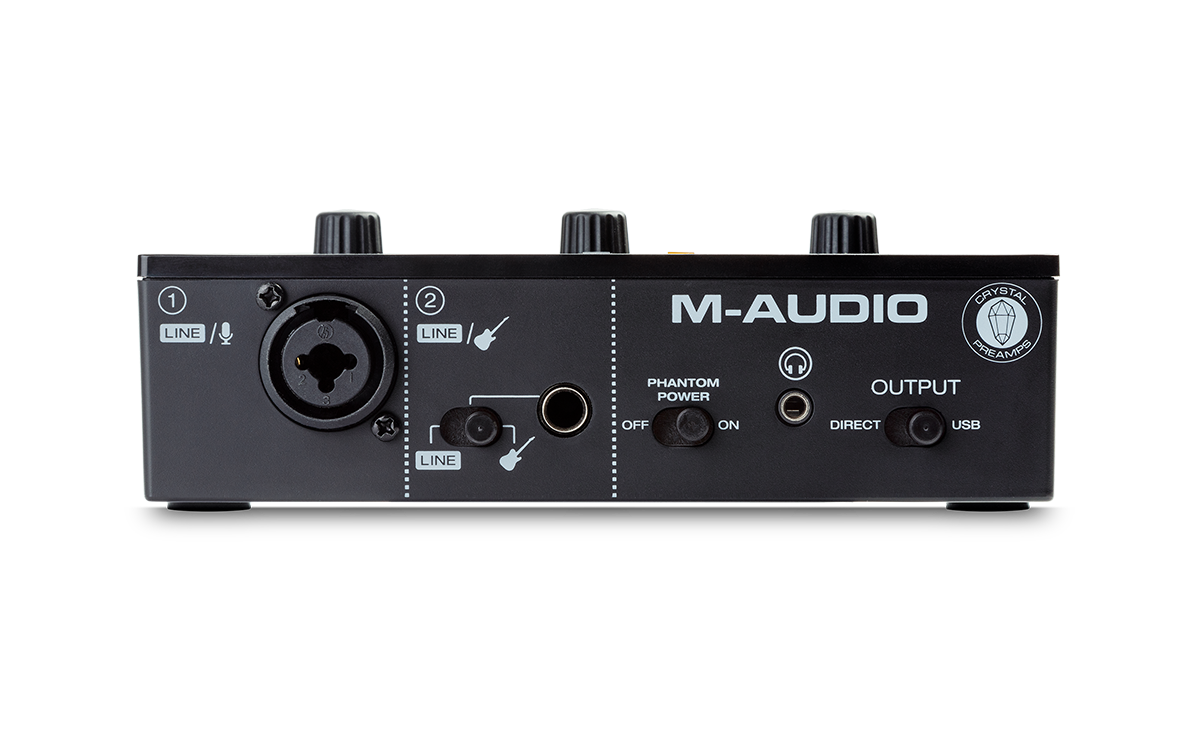

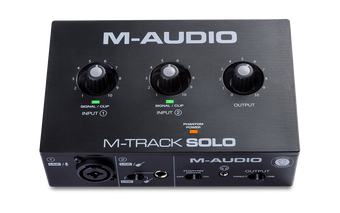

M-TRACK SOLO II M-AUDIO

Main features

• 2-channel USB recording interface for Mac and PC
• (1) Combo input with Crystal Preamp for incredible audio quality
• +48V phantom power for connecting studio condenser microphones
• Dedicated instrument input for guitar or bass
• Stereo line input for connecting a digital piano, keyboard and more!
• 1/8" headphone and stereo RCA outputs allow for easy monitoring
• USB/Direct switch to listen to the input signal or the computer signal
• Software bundle including: MPC Beats, AIR Music Tech Electric, Bassline and TubeSynth, Revalver guitar amp plug-in and 80 AIR effects plug-ins

• Technical specifications

  Microphone input (balanced XLR)
  Response frequency	20 Hz – 20 kHz (+0.1 dB)
  Signal to noise ratio	109 dB (A-weighted)
  THD+N	0.003% (min gain, 0 dBu output, A-weighted)
  EIN Preamp	-128 dBu (max gain, 40 Ω source, A-weighted)
  Gain range	0dB to +54dB

  Line Input (Balanced 1/4" [6.35 mm] TRS)
  Response frequency	20 Hz – 20 kHz (+0.1 dB)
  Sensitivity	-43 dBu
  THD+N	0.002% (min gain, 0 dBu output, A-weighted)
  Gain range	-10 dB to +44 dB

  Instrument Input (1/4" [6.35 mm] unbalanced TS)
  Response frequency	20 Hz – 20 kHz (+0.1 dB)
  THD+N	0.005% (min gain, 0 dBu output, A-weighted)
  Input impedance	1 MΩ
  Gain range	-10 dB to +44 dB

  RCA outputs
  Response frequency	20 Hz – 20 kHz (+0.1 dB)
  Signal to noise ratio	109 dB (A-weighted)
  THD+N	0.002% (0 dBu output, A-weighted)
  Maximum output level	+4 dBu

  Headphone output (1/8" [3.5 mm] TRS)
  Power	60 mW/Ch, 32 Ω
  Response frequency	20 Hz – 20 kHz (+0.5 dB)
  THD+N	0.02% (A-weighted)
  Signal to noise ratio	100 dB (A-weighted)
